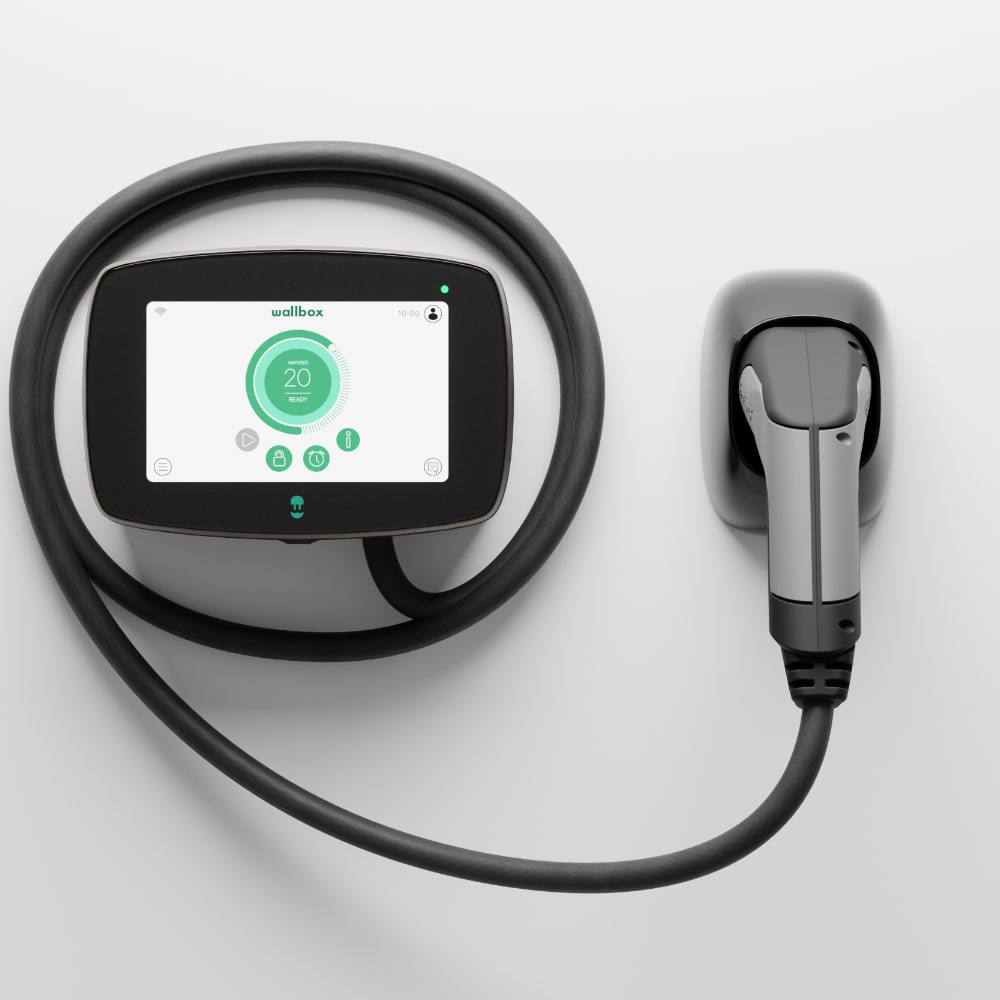

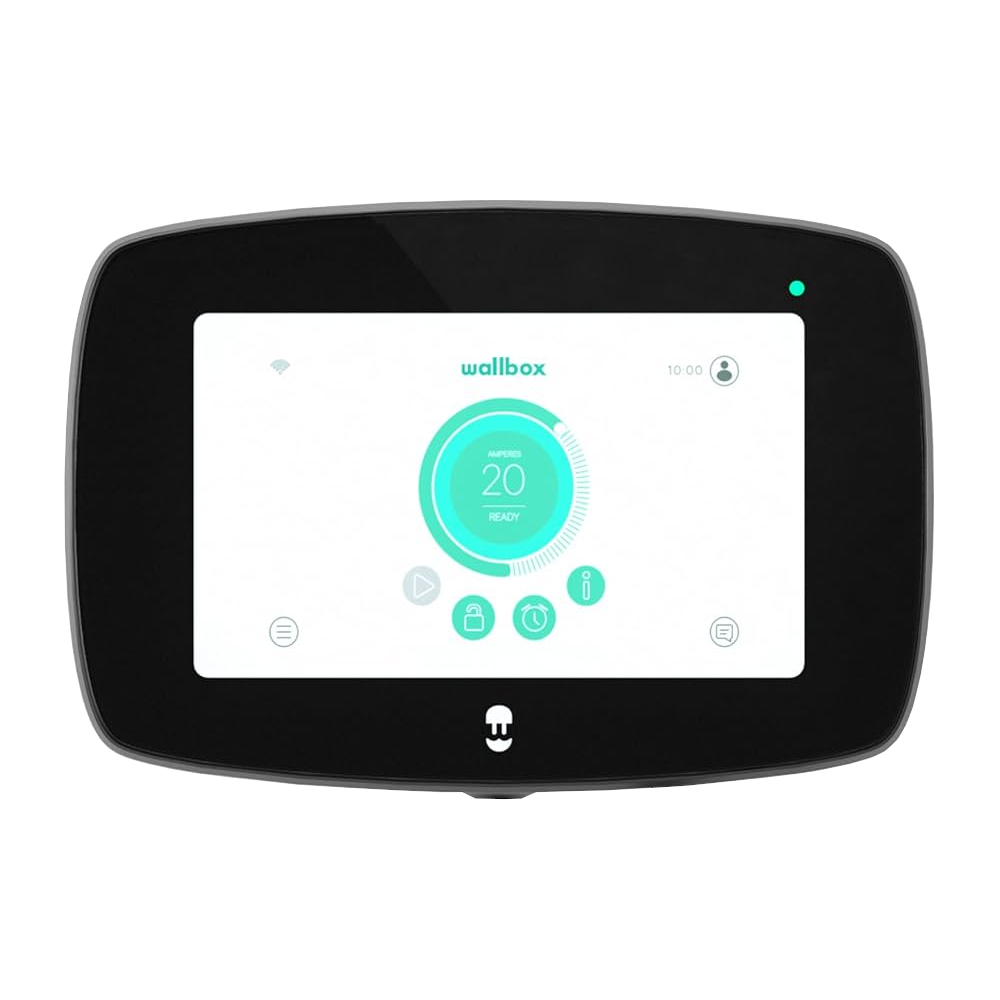

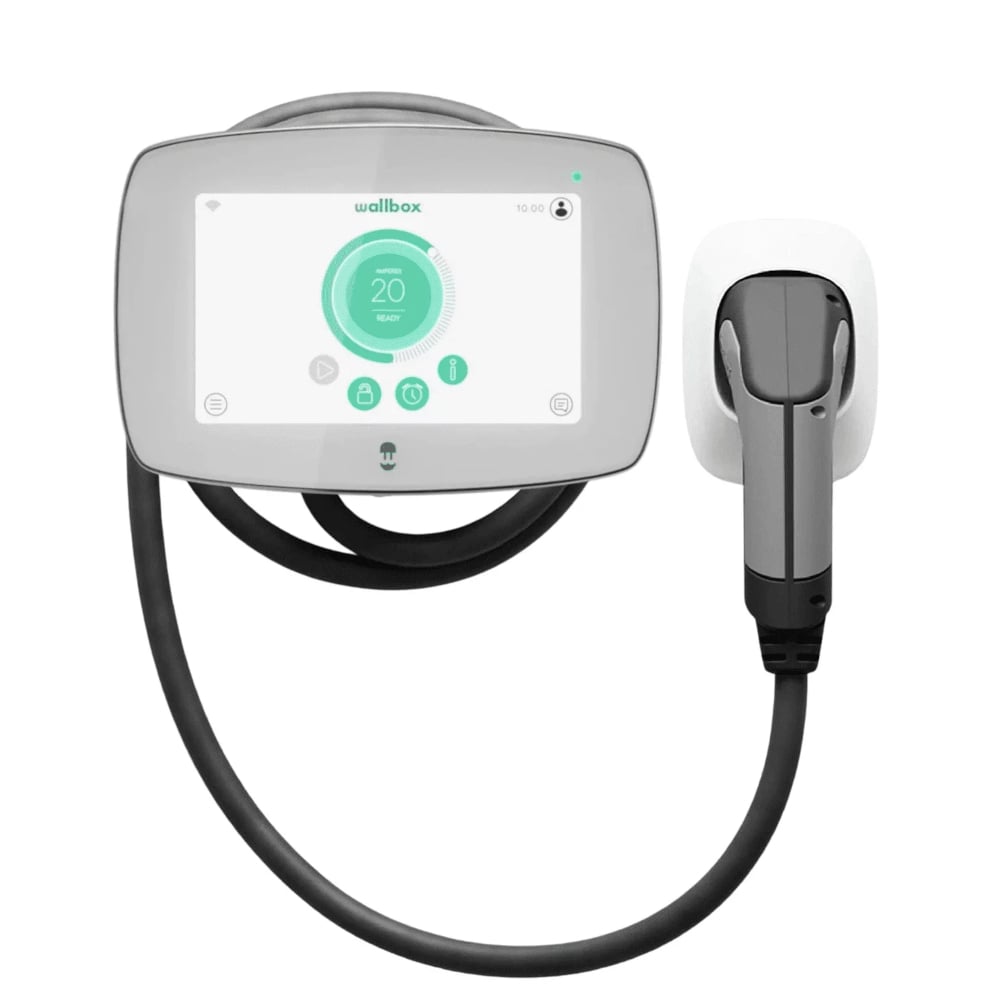

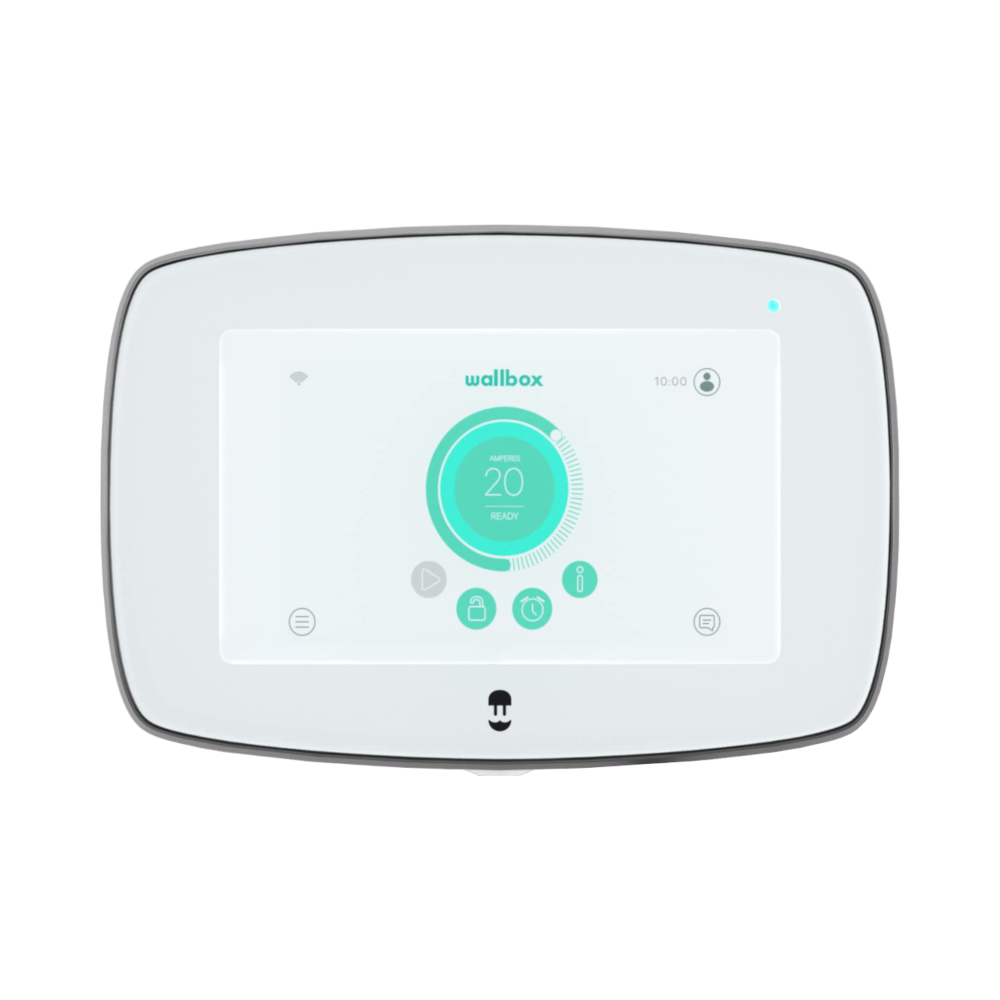

Wallbox Commander 2 - Type 2 - EV Charger

General Specifications:

Charging Power: 22 kW (three-phase)
Charger: AC
Colours: White or Black
Connection: Type 2
Charging Mode (IEC 61851-1): Mode 3
Dimensions: 221x152x115 mm (without cable)
Weight: 2,4 Kg ( Without Cable )
Operating Temperature: -25 ºC to 40 ºC
Standards: CE mark (LVD 2014/35/EU, EMCD 2014/30/EU),
EC 61851-1, IEC 61851-21-2, IEC 62196-2

Electrical Specifications:

Maximum Charging Power: 22 kW (three-phase)
Rated Voltage AC+10%: 230V(1P)/400V(3P)
Cable Cross-Section: 5x10mm2
Configuration Current: From 6 A to rated Current
Protection Rating: IP54 / IK10
Surge Category: CAT III
Residual Current Detection: DC 6 mA

Connectivity & User Interface:

Connectivity: 3G/4G, Wi-Fi, Ethernet, Bluetooth
User Identification: PIN Code / RFID Card / myWallbox App /
User Interface: Touchscreen / myWallbox App & Portal
Charger Status Information: Touchscreen / RGB LED / myWallbox app & portal
Compatible features: Power Sharing / Power Boost / Dynamic Power Sharing
Communication Protocol: myWallbox / OCPP 1.6j
