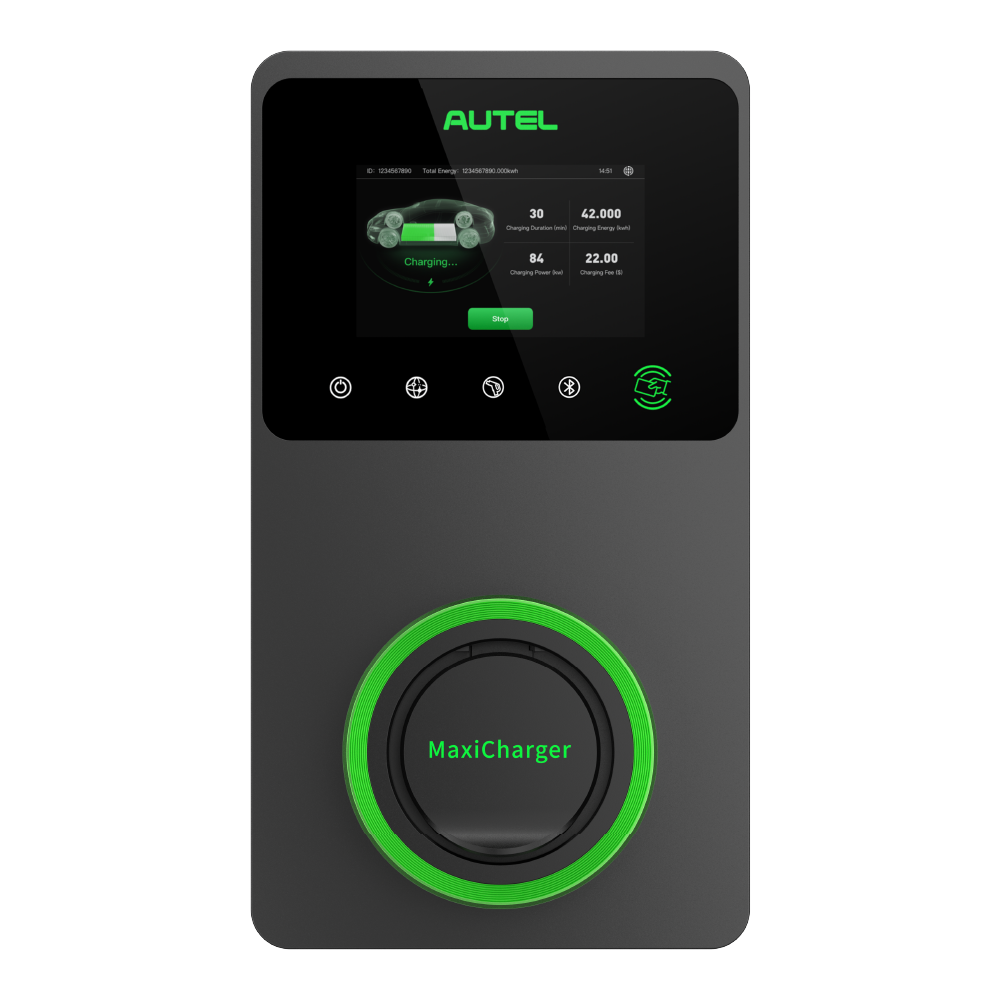

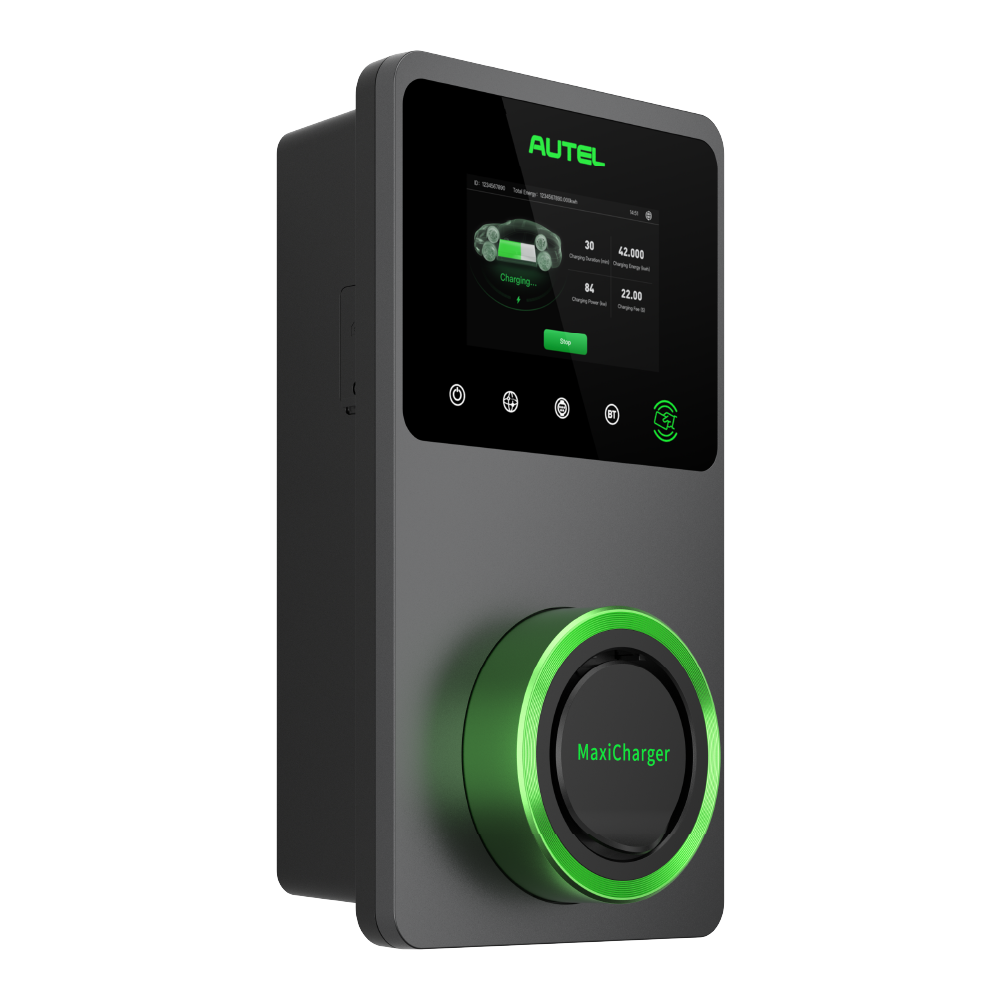

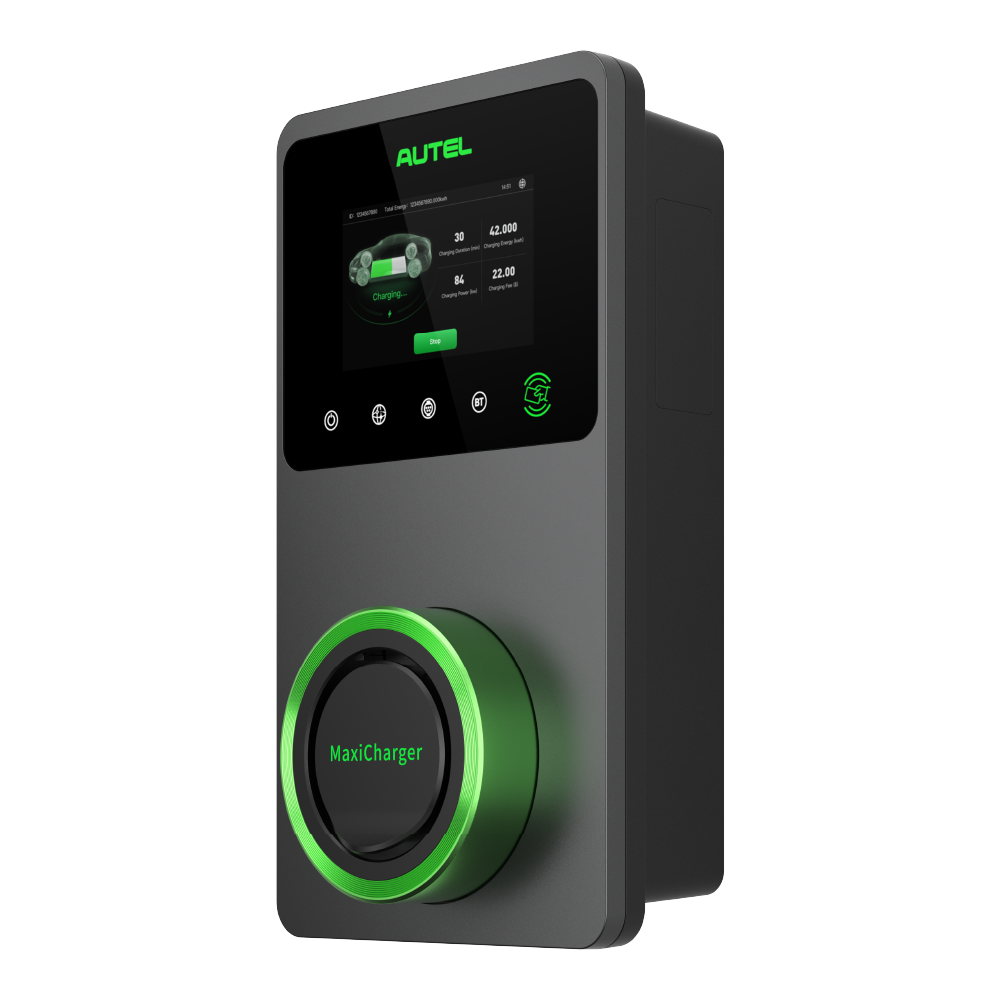

AUTEL - MaxiCharger AC Wallbox 22kW

General Specifications:

Charging Power: 22kW AC (Three Phase)
Protection: Overcurrent, Overvoltage, Undervoltage, Integrated Surge Protection
Ground Fault Protection: AC 30mA + DC 6mA
Colour: Gray
Power measurement: Build-in MID Certified meter (Only applicable to the products with LCD screen)
Connector type: IEC 62196 type 2 socket or socket with shutter
Charging Mode: Mode 3
Dimensions: 336 × 187 × 85 mm
Operating Temperature: -40 ºC up to +55 ºC
Safety and Compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/-7 , CE (TUV)
Warranty:  3 Years

Connectivity:

Connectivity: 4G connectivity (optional), Wi-Fi, Bluetooth, Ethernet (Optional), RS485
User Identification: RFID Card / Autel Charge app
User Interface: Autel Charge APP; Autel Charge Cloud
Charger Status Information: LED / APP / Touch screen (Optional, 5 inch LCD, 800*480)
Communication Protocol: OCPP 1.6J
Installation: Indoor/Outdoor Installation  IP65 (IP54 for socket version)
Protection: IK10 (Screen: IK08)  rating certification
