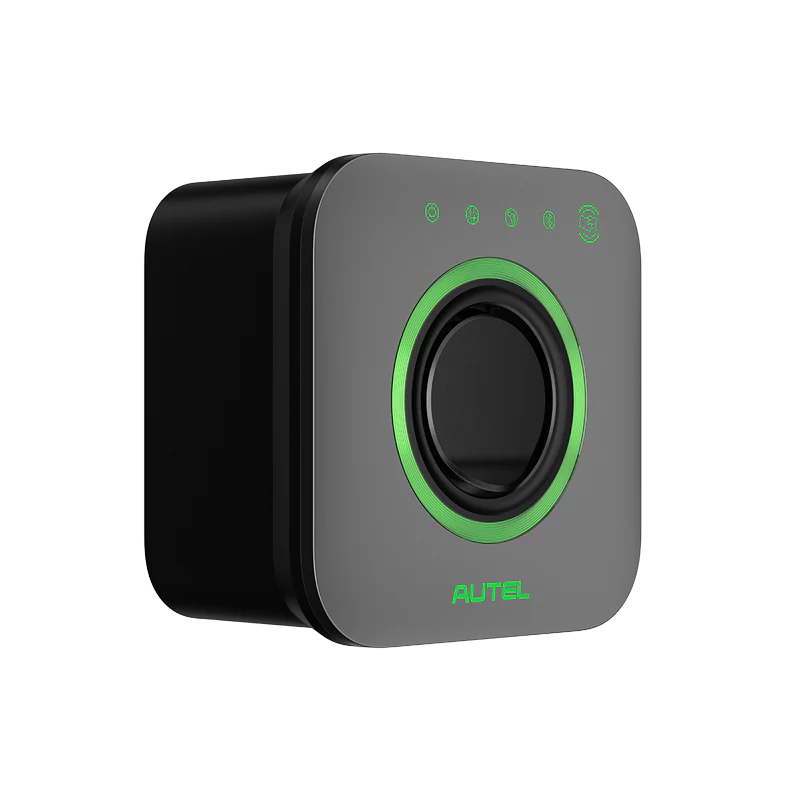

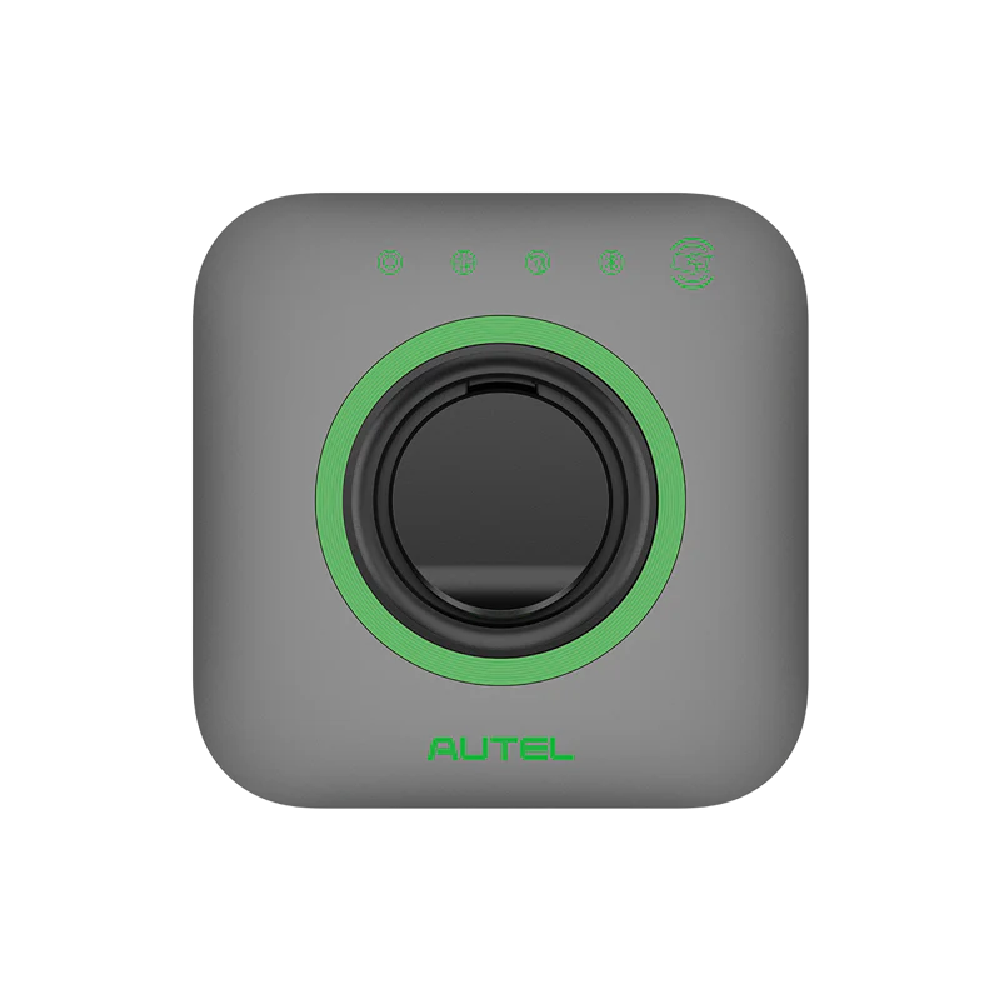

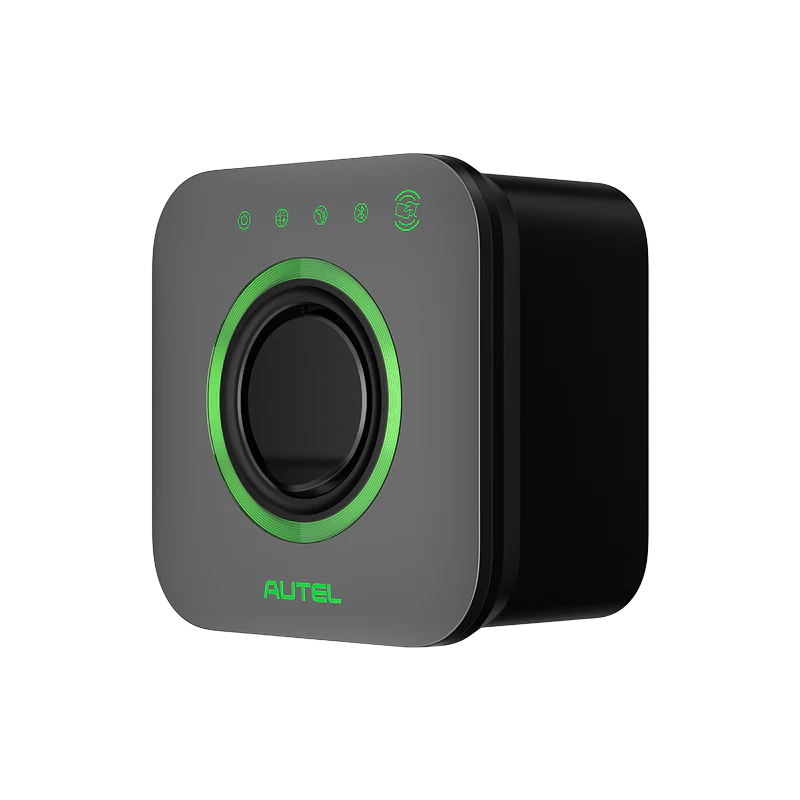

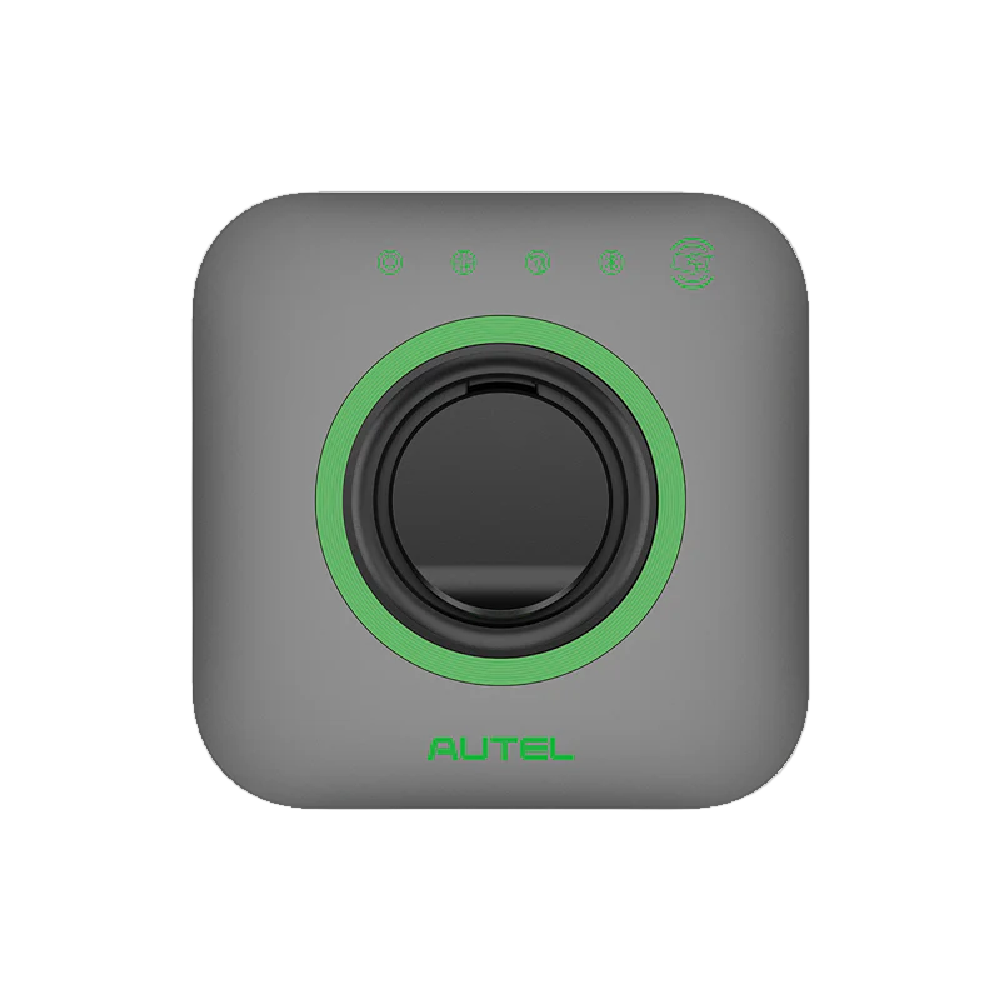

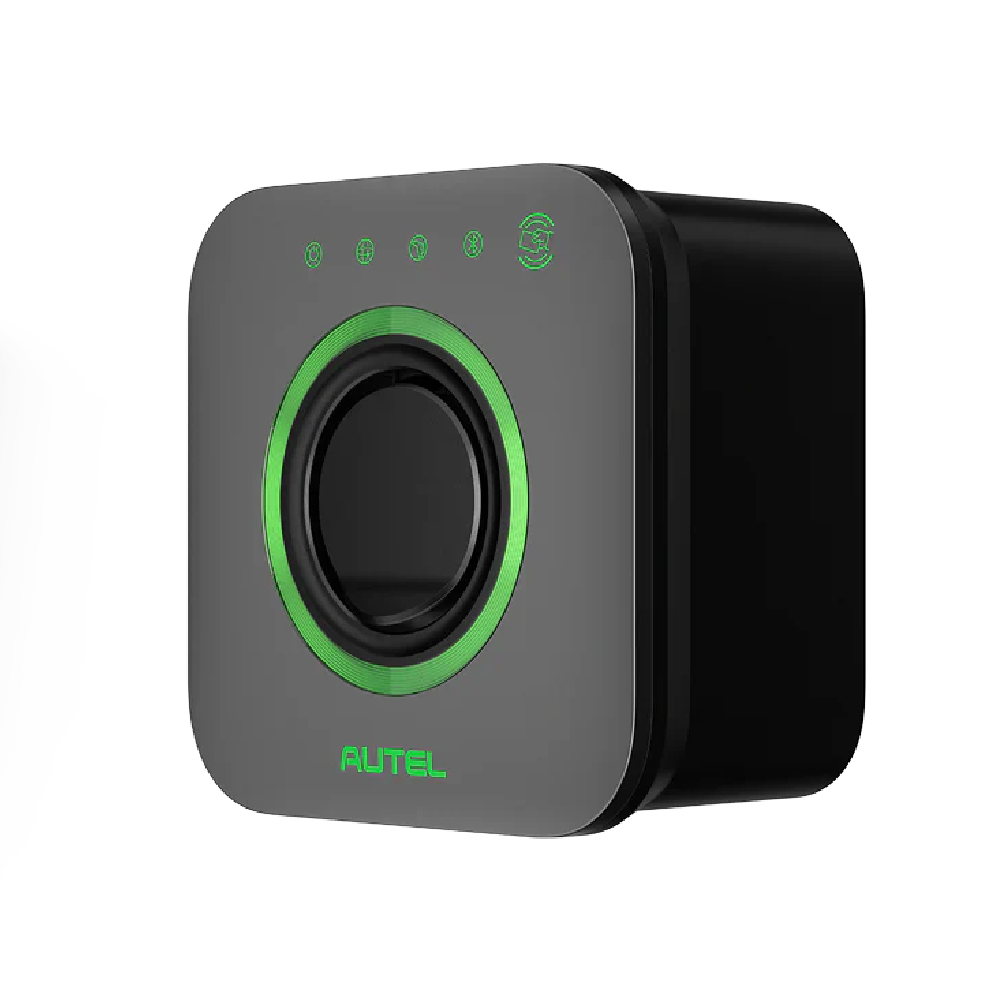

AUTEL - AC Compact 22kW Socket - Dark Grey

General Specifications:

Charging Power: 7kW AC ( Single Phase) / 22kW AC (Three Phase)
Protection: Overcurrent, Overvoltage, Undervoltage, Integrated Surge Protection
Ground Fault Protection: AC 30mA + DC 6mA
Colour: Gray

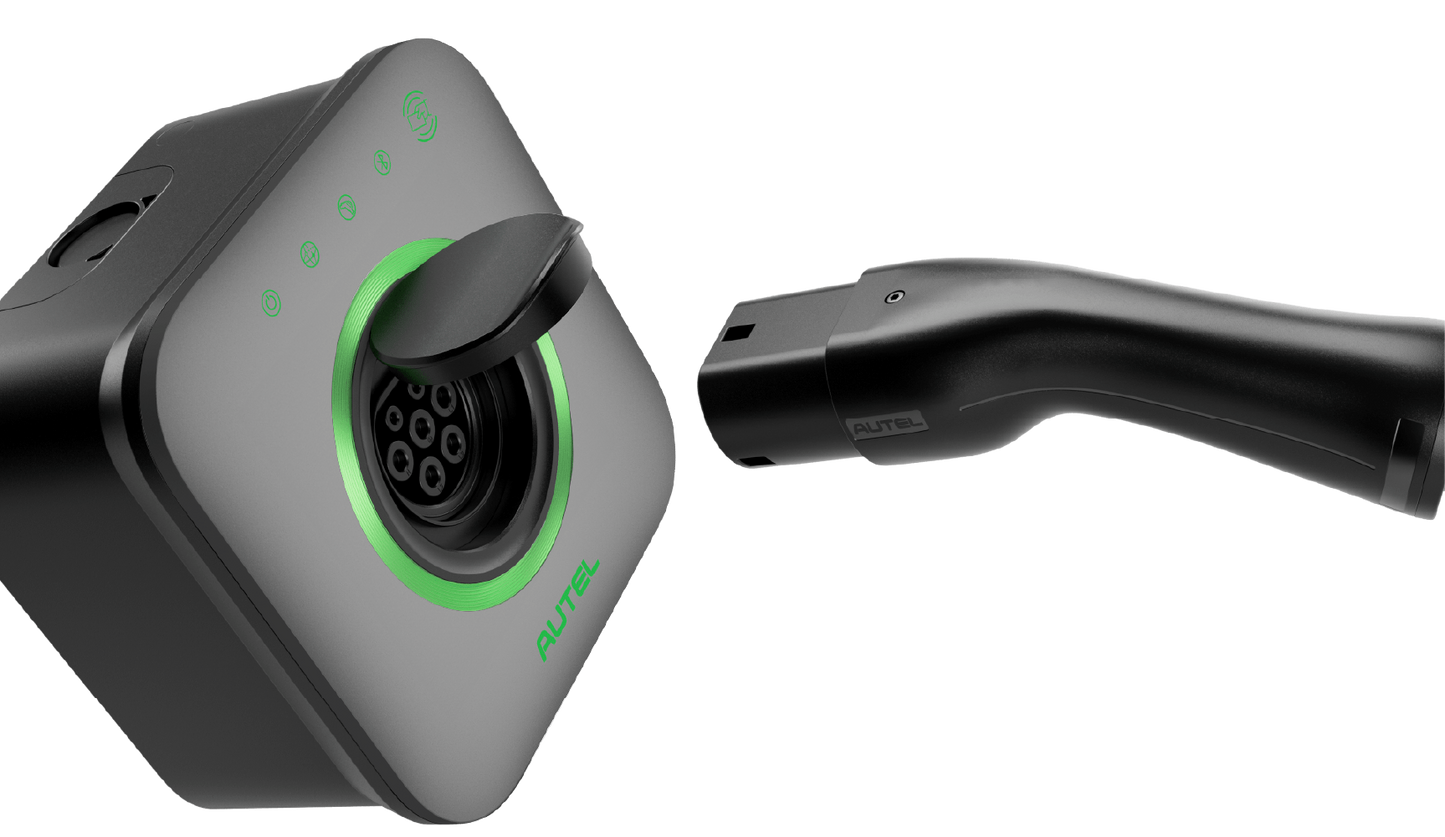

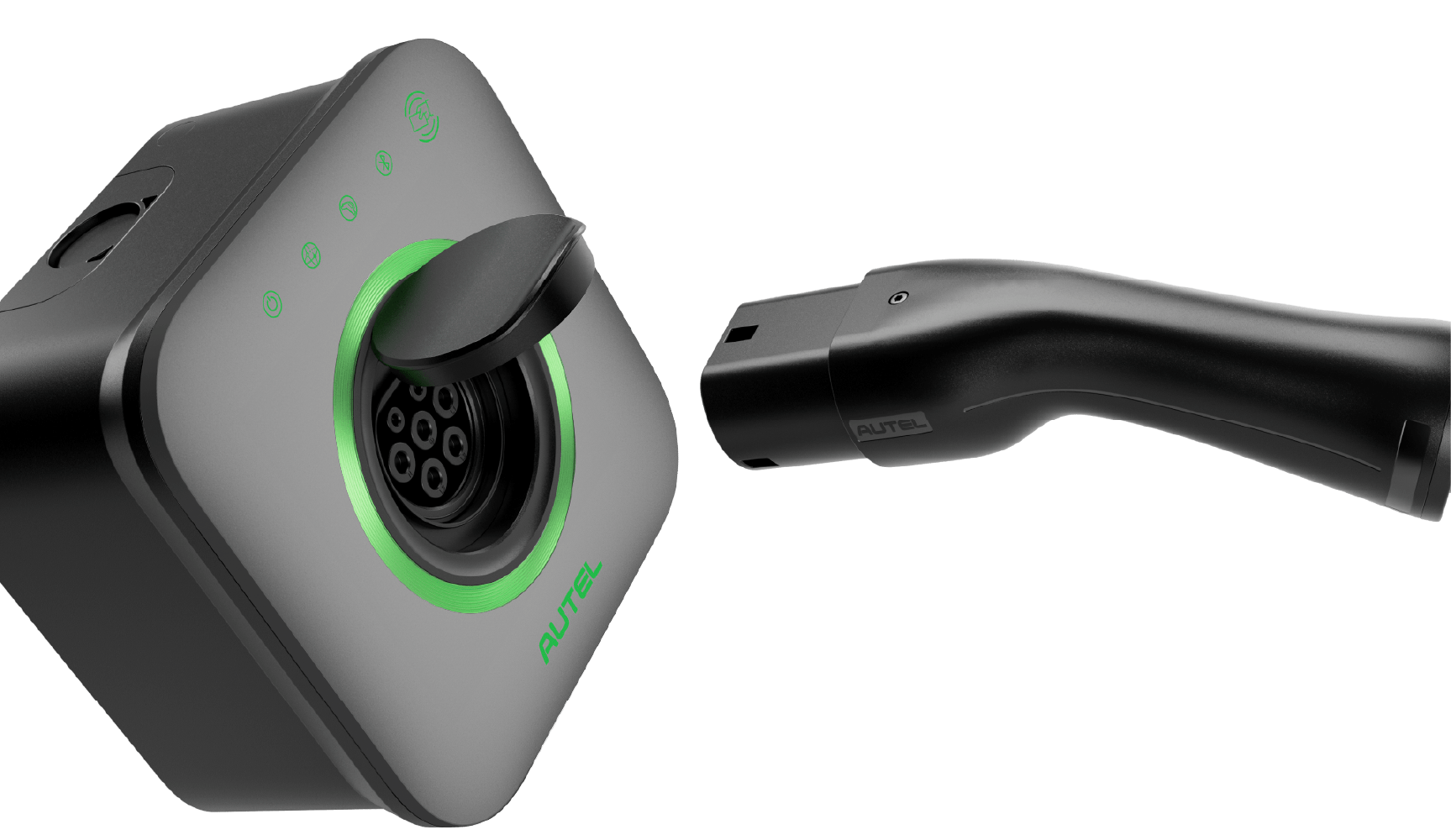

Connector type: Type 2 Socket IEC 62196
Charging Mode: Mode 3
Dimensions: 202 x 202 x 115 mm
Weight: 2kg
Operating Temperature: -30 ºC up to 50 ºC
Safety and Compliance: IEC/EN 61851-1, EN 50663, EN 50665, IEC/EN 62955 , CE (TUV)
Warranty:  3 Years

Connectivity:

Connectivity: 4G connectivity (optional), Wi-Fi, Bluetooth, Ethernet (Optional), RS485
User Identification: RFID Card / Autel Charge app
User Interface: Autel Charge app & portal
Charger Status Information: LED / Autel Charge app & portal
Communication Protocol: OCPP 1.6J
Installation: Indoor/Outdoor Installation  IP54 Enclosure Rating
Protection: IK10 /  rating certification
